Convert RGB to YUV420

In this tutorial we are going to learn how to convert image from RGB color to YUV420 using kornia.color.

Get data and libraries to work with

%%capture
!pip install kornia
!pip install py7zr

import io

import requests


def download_image(url: str, filename: str = "") -> str:
    filename = url.split("/")[-1] if len(filename) == 0 else filename
    # Download
    bytesio = io.BytesIO(requests.get(url).content)
    # Save file
    with open(filename, "wb") as outfile:
        outfile.write(bytesio.getbuffer())

    return filename


url = "https://github.com/kornia/data/raw/main/foreman_qcif.7z"
download_image(url)

'foreman_qcif.7z'

Import needed libs

import kornia
import numpy as np

# prepare the data, decompress so we have a foreman_qcif.yuv ready
import py7zr
import torch

with py7zr.SevenZipFile("foreman_qcif.7z", mode="r") as z:
    z.extractall()

Define functions for reading the yuv file to torch tensor for use in Kornia

import matplotlib.pyplot as plt


def read_frame(fname, framenum):
    # A typical 420 yuv file is 3 planes Y, u then v with u/v a quartyer the size of Y
    # Build rgb png images from foreman that is 3 plane yuv420
    yuvnp = np.fromfile(fname, dtype=np.uint8, count=int(176 * 144 * 1.5), offset=int(176 * 144 * 1.5) * framenum)
    y = torch.from_numpy(yuvnp[0 : 176 * 144].reshape((1, 1, 144, 176)).astype(np.float32) / 255.0)

    uv_tmp = yuvnp[176 * 144 : int(144 * 176 * 3 / 2)].reshape((1, 2, int(144 / 2), int(176 / 2)))
    # uv (chroma) is typically defined from -0.5 to 0.5 (or -128 to 128 for 8-bit)
    uv = torch.from_numpy(uv_tmp.astype(np.float32) / 255.0) - 0.5
    return (y, uv)

Sample what the images look like Y, u, v channels separaatly and then converted to rgn through kornia (and back to numpy in this case)

(y, uv) = read_frame("foreman_qcif.yuv", 0)  # using compression classic foreman

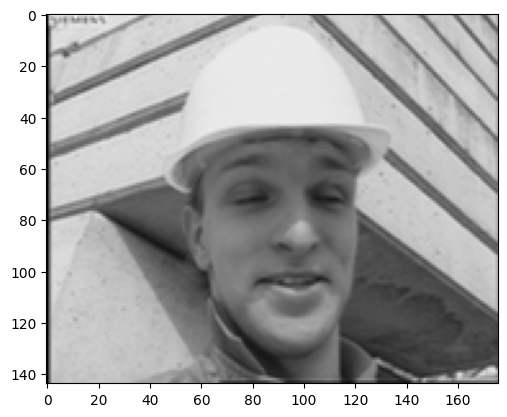

plt.imshow((y.numpy()[0, 0, :, :] * 255.0).astype(np.uint8), cmap="gray")
plt.figure()

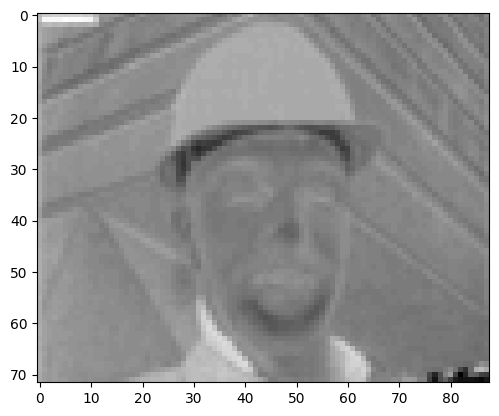

plt.imshow(((uv.numpy()[0, 0, :, :] + 0.5) * 255.0).astype(np.uint8), cmap="gray")
plt.figure()

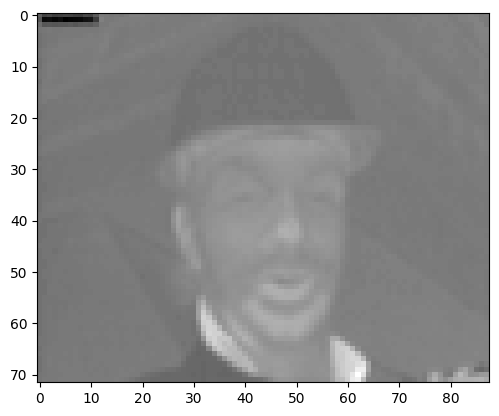

plt.imshow(((uv.numpy()[0, 1, :, :] + 0.5) * 255.0).astype(np.uint8), cmap="gray")

rgb = np.moveaxis(kornia.color.yuv420_to_rgb(y, uv).numpy(), 1, 3).reshape((144, 176, 3))

print("as converted through kornia")
plt.figure()
plt.imshow((rgb * 255).astype(np.uint8))

as converted through kornia

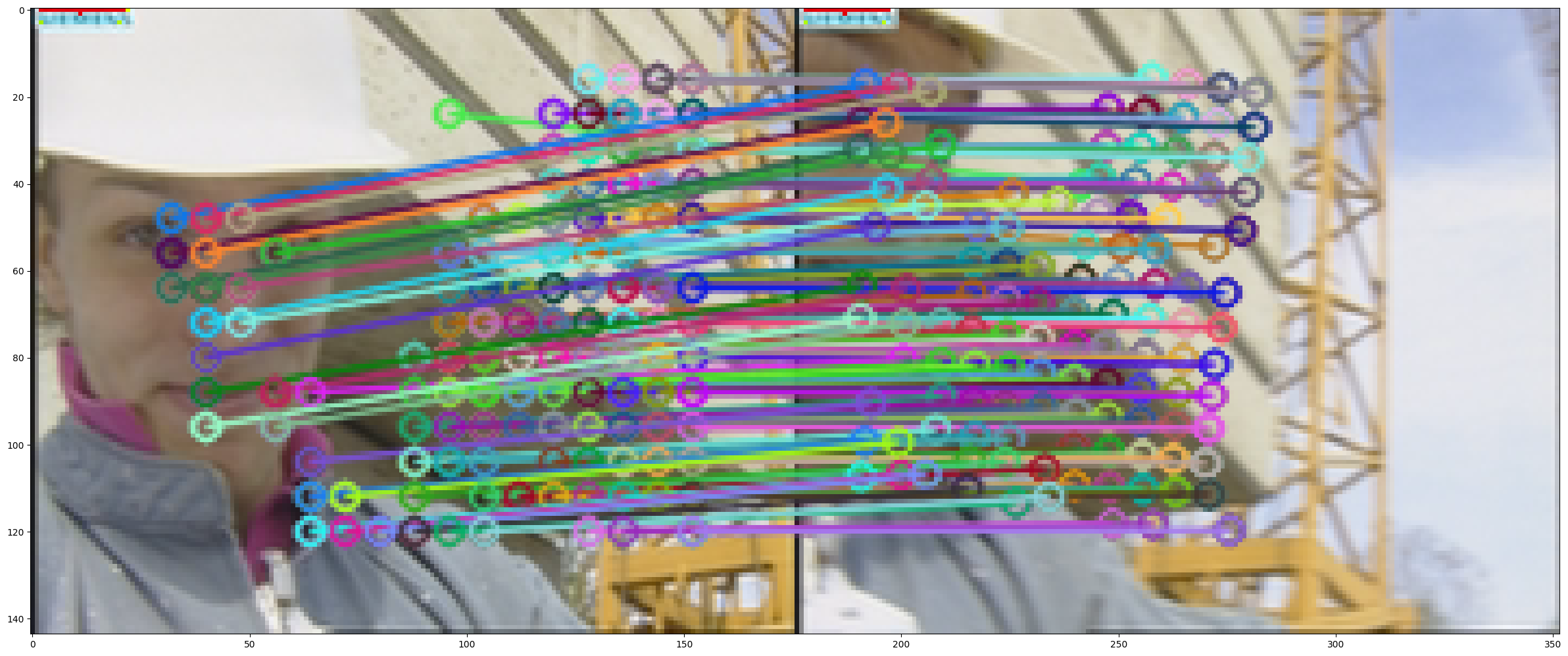

We can use these in some internal Kornia algorithm implementations. Lets pretend we want to do LoFTR on the red channel

import cv2

loftr = kornia.feature.LoFTR("outdoor")
(y0, uv0) = read_frame("foreman_qcif.yuv", 175)
(y1, uv1) = read_frame("foreman_qcif.yuv", 185)
rgb0 = kornia.color.yuv420_to_rgb(y0, uv0)
rgb1 = kornia.color.yuv420_to_rgb(y1, uv1)

with torch.no_grad():
    matches = loftr({"image0": rgb0[:, 0:1, :, :], "image1": rgb1[:, 0:1, :, :]})

matched_image = cv2.drawMatches(
    np.moveaxis(rgb0.numpy()[0, :, :, :] * 255.0, 0, 2).astype(np.uint8),
    [cv2.KeyPoint(x[0], x[1], 0) for x in matches["keypoints0"].numpy()],
    np.moveaxis(rgb1.numpy()[0, :, :, :] * 255.0, 0, 2).astype(np.uint8),
    [cv2.KeyPoint(x[0], x[1], 0) for x in matches["keypoints1"].numpy()],
    [cv2.DMatch(x, x, 0) for x in range(len(matches["keypoints1"].numpy()))],
    None,
)

plt.figure(figsize=(30, 30))
plt.imshow(matched_image)
