Augmentation Sequential

In this tutorial we will show how we can quickly perform data augmentation for various tasks (segmentation, detection, regression) using the features provided by the kornia.augmentation.AugmentationSequential API.

Install and get data

We install Kornia and some dependencies, and download a simple data sample

!pip install kornia
!pip install kornia-rs

import io

import requests


def download_image(url: str, filename: str = "") -> str:
    filename = url.split("/")[-1] if len(filename) == 0 else filename
    # Download
    bytesio = io.BytesIO(requests.get(url).content)
    # Save file
    with open(filename, "wb") as outfile:
        outfile.write(bytesio.getbuffer())

    return filename


url = "https://raw.githubusercontent.com/kornia/data/main/panda.jpg"
download_image(url)

import cv2
import kornia as K
import numpy as np
import torch
from kornia.augmentation import AugmentationSequential
from kornia.geometry import bbox_to_mask
from matplotlib import pyplot as plt

def plot_resulting_image(img, bbox, keypoints, mask):
    img = img * mask
    img_array = K.tensor_to_image(img.mul(255).byte()).copy()
    img_draw = cv2.polylines(img_array, bbox.numpy(), isClosed=True, color=(255, 0, 0))
    for k in keypoints[0]:
        img_draw = cv2.circle(img_draw, tuple(k.numpy()[:2]), radius=6, color=(255, 0, 0), thickness=-1)
    return img_draw

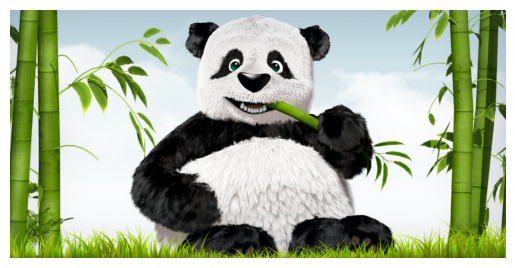

img_tensor = K.io.load_image("panda.jpg", K.io.ImageLoadType.RGB32)[None, ...]  # BxCxHxW
h, w = img_tensor.shape[-2:]

plt.axis("off")
plt.imshow(K.tensor_to_image(img_tensor))
plt.show()

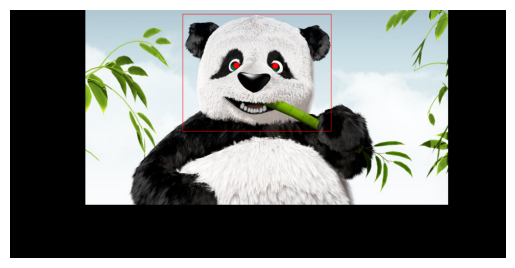

Define Augmentation Sequential and Different Labels

aug_list = AugmentationSequential(
    K.augmentation.ColorJitter(0.1, 0.1, 0.1, 0.1, p=1.0),
    K.augmentation.RandomAffine(360, [0.1, 0.1], [0.7, 1.2], [30.0, 50.0], p=1.0),
    K.augmentation.RandomPerspective(0.5, p=1.0),
    data_keys=["input", "bbox", "keypoints", "mask"],
    same_on_batch=False,
)

bbox = torch.tensor([[[[355, 10], [660, 10], [660, 250], [355, 250]]]])
keypoints = torch.tensor([[[465, 115], [545, 116]]])
mask = bbox_to_mask(torch.tensor([[[155, 0], [900, 0], [900, 400], [155, 400]]]), w, h)[None].float()

img_out = plot_resulting_image(img_tensor, bbox[0], keypoints, mask[0])

plt.axis("off")
plt.imshow(img_out)
plt.show()

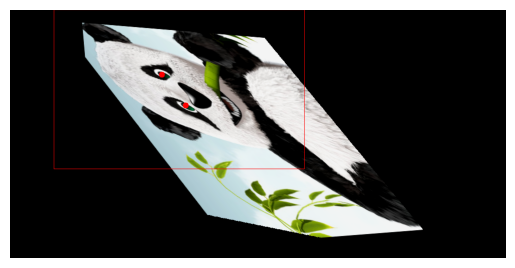

Forward Computations

out_tensor = aug_list(img_tensor, bbox.float(), keypoints.float(), mask)
img_out = plot_resulting_image(
    out_tensor[0][0],
    out_tensor[1].int(),
    out_tensor[2].int(),
    out_tensor[3][0],
)

plt.axis("off")
plt.imshow(img_out)
plt.show()

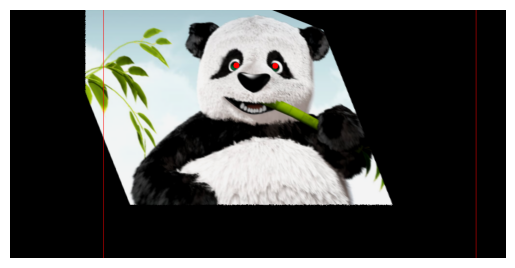

Inverse Transformations

out_tensor_inv = aug_list.inverse(*out_tensor)
img_out = plot_resulting_image(
    out_tensor_inv[0][0],
    out_tensor_inv[1].int(),
    out_tensor_inv[2].int(),
    out_tensor_inv[3][0],
)

plt.axis("off")
plt.imshow(img_out)
plt.show()
