Edge Detection

In this tutorial we are going to learn how to detect edges in images with kornia.filters components.

%%capture
!pip install kornia
!pip install kornia-rs

import io

import requests


def download_image(url: str, filename: str = "") -> str:
    filename = url.split("/")[-1] if len(filename) == 0 else filename
    # Download
    bytesio = io.BytesIO(requests.get(url).content)
    # Save file
    with open(filename, "wb") as outfile:
        outfile.write(bytesio.getbuffer())

    return filename


url = "https://github.com/kornia/data/raw/main/doraemon.png"
download_image(url)

import cv2
import kornia as K
import kornia.utils
import numpy as np
import torch
import torchvision
from matplotlib import pyplot as plt
from PIL import Image

We use Kornia to load an image to memory represented in a torch.tensor

x_rgb: torch.Tensor = (K.image_to_tensor(np.array(Image.open("doraemon.png").convert("RGB"))).float() / 255.0)[
    None, ...
]  # BxCxHxW

x_gray = K.color.rgb_to_grayscale(x_rgb)

def imshow(input: torch.Tensor):
    out = torchvision.utils.make_grid(input, nrow=2, padding=5)
    out_np: np.ndarray = K.utils.tensor_to_image(out)
    plt.imshow(out_np)
    plt.axis("off")
    plt.show()

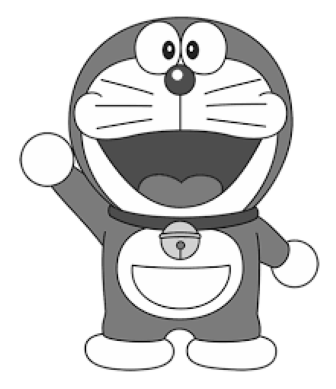

imshow(x_gray)

1st order derivates

grads: torch.Tensor = K.filters.spatial_gradient(x_gray, order=1)  # BxCx2xHxW
grads_x = grads[:, :, 0]
grads_y = grads[:, :, 1]

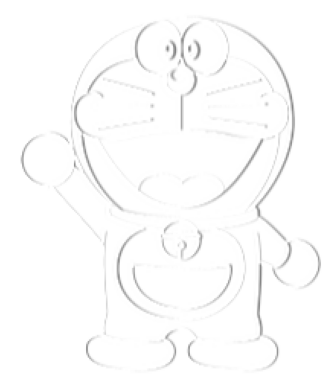

# Show first derivatives in x
imshow(1.0 - grads_x.clamp(0.0, 1.0))

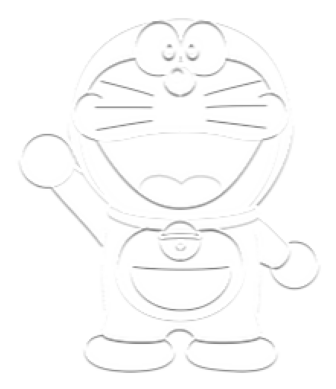

# Show first derivatives in y
imshow(1.0 - grads_y.clamp(0.0, 1.0))

2nd order derivatives

grads: torch.Tensor = K.filters.spatial_gradient(x_gray, order=2)  # BxCx2xHxW
grads_x = grads[:, :, 0]
grads_y = grads[:, :, 1]

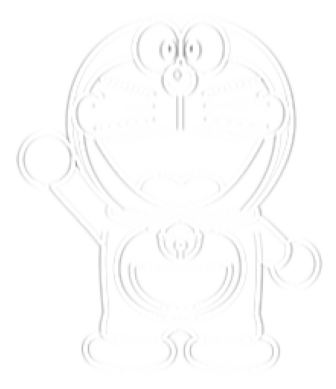

# Show second derivatives in x
imshow(1.0 - grads_x.clamp(0.0, 1.0))

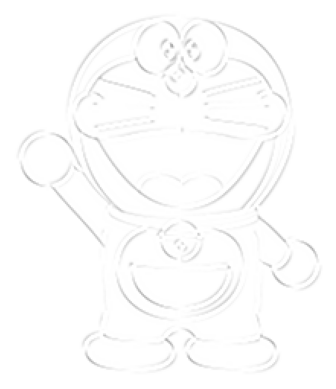

# Show second derivatives in y
imshow(1.0 - grads_y.clamp(0.0, 1.0))

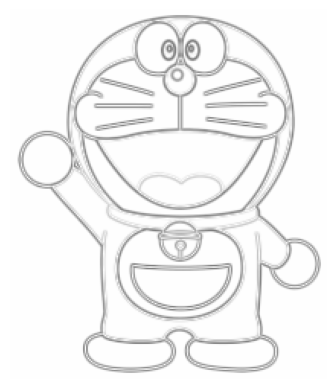

Sobel Edges

Once with the gradients in the two directions we can computet the Sobel edges. However, in kornia we already have it implemented.

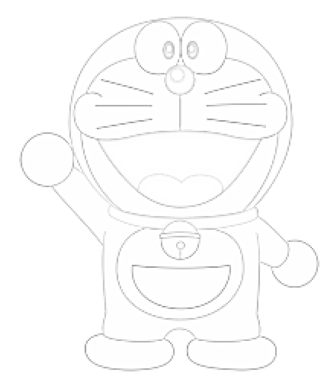

x_sobel: torch.Tensor = K.filters.sobel(x_gray)
imshow(1.0 - x_sobel)

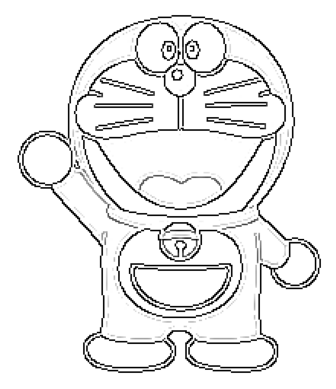

Laplacian edges

x_laplacian: torch.Tensor = K.filters.laplacian(x_gray, kernel_size=5)
imshow(1.0 - x_laplacian.clamp(0.0, 1.0))

Canny edges

The Canny operator combines gaussian filtering, gradient magnitudes and hysteresis thresholding into the classic edge detector. It provides the magnitudes as well as the edges after the hysteresis process. Note that the edges are a binary image which is not differentiable! We demonstrate it on a second example image.

import kornia
import numpy as np
from PIL import Image

kornia.__version__

Now we download the example image.

import io

import requests


def download_image(url: str, filename: str = "") -> str:
    filename = url.split("/")[-1] if len(filename) == 0 else filename
    # Download
    bytesio = io.BytesIO(requests.get(url).content)
    # Save file
    with open(filename, "wb") as outfile:
        outfile.write(bytesio.getbuffer())

    return filename


url = "https://github.com/kornia/data/raw/main/paranoia_agent.jpg"
download_image(url)

import kornia
import matplotlib.pyplot as plt
import torch

# read the image with Kornia
img_tensor = (kornia.image_to_tensor(np.array(Image.open("paranoia_agent.jpg").convert("RGB"))).float() / 255.0)[
    None, ...
]  # BxCxHxW
img_array = kornia.tensor_to_image(img_tensor)

plt.axis("off")
plt.imshow(img_array)
plt.show()

To apply a filter, we create the Canny operator object and apply it to the data. It will provide the magnitudes as well as the edges after the hysteresis process. Note that the edges are a binary image which is not differentiable!

# create the operator
canny = kornia.filters.Canny()

# blur the image
x_magnitude, x_canny = canny(img_tensor)

That’s it! We can compare the source image and the results from the magnitude as well as the edges:

# convert back to numpy
img_magnitude = kornia.tensor_to_image(x_magnitude.byte())
img_canny = kornia.tensor_to_image(x_canny.byte())

# Create the plot
fig, axs = plt.subplots(1, 3, figsize=(16, 16))
axs = axs.ravel()

axs[0].axis("off")
axs[0].set_title("image source")
axs[0].imshow(img_array)

axs[1].axis("off")
axs[1].set_title("canny magnitude")
axs[1].imshow(img_magnitude, cmap="Greys")

axs[2].axis("off")
axs[2].set_title("canny edges")
axs[2].imshow(img_canny, cmap="Greys")

plt.show()

Note that our final result still recovers some edges whose magnitude is quite low. Let us increase the thresholds and compare the final edges.

# create the operator
canny = kornia.filters.Canny(low_threshold=0.4, high_threshold=0.5)

# blur the image
_, x_canny_threshold = canny(img_tensor)

import torch.nn.functional as F

# convert back to numpy
img_canny_threshold = kornia.tensor_to_image(x_canny_threshold.byte())

# Create the plot
fig, axs = plt.subplots(1, 3, figsize=(16, 16))
axs = axs.ravel()

axs[0].axis("off")
axs[0].set_title("image source")
axs[0].imshow(img_array)

axs[1].axis("off")
axs[1].set_title("canny default")
axs[1].imshow(img_canny, cmap="Greys")

axs[2].axis("off")
axs[2].set_title("canny defined thresholds")
axs[2].imshow(img_canny_threshold, cmap="Greys")

plt.show()
