Geometric image and points transformations

Intermediate

Keypoints

kornia.augmentation

kornia.geometry

In this tutorial we will learn how to generate and manipulate geometrically synthetic images and use their transformations to manipulate 2D points and how to combine with torch components to perform data augmention.

Author

Edgar Riba

Published

August 28, 2021

Kornia recently introduced a module called kornia.augmentation which among other functionalities, provides a set of operators to perform geometric data augmentation with the option to retrieve the applied transformation to the original image in order to perform transformations of additional data such keypoints, bound boxes, or others.

Our geometric transformations API is compliant with torchvision including a few extras such as the flag return_transform that returns to the user the applied transformation to the original.

Additionally, our API inherits from nn.Module meaning that can be combined with nn.Sequential and chain the different applied transformations, when this last one is used. Moreover, we can compute in batches of images using different devices such CPU/GPU (and TPU in future).

Finally, all the operators are fully differentiable, a topic that we will cover in future tutorials so that users can make use of this feature.

In brief, in this tutorial we will learn how to:

Use kornia.augmentation.RandomAffine to generate random views and retrieve the transformation.
Use kornia.geometry.transform_points to manipulate points between views.
Combine the above in a nn.Module with other kornia.augmenation components to generate a complete augmentation pipeline.

Installation

We first install Kornia v0.2.0 and Matplotlib for visualisation.

To play with data we will use some samples from HPatches dataset [1].

[1] HPatches: A benchmark and evaluation of handcrafted and learned local descriptors, Vassileios Balntas, Karel Lenc, Andrea Vedaldi and Krystian Mikolajczyk, CVPR 2017.

%%capture
!pip install kornia
!pip install kornia-rs

import io

import requests


def download_image(url: str, filename: str = "") -> str:
    filename = url.split("/")[-1] if len(filename) == 0 else filename
    # Download
    bytesio = io.BytesIO(requests.get(url).content)
    # Save file
    with open(filename, "wb") as outfile:
        outfile.write(bytesio.getbuffer())

    return filename


download_image("https://github.com/kornia/data/raw/main/homography/img1.ppm")
download_image("https://github.com/kornia/data/raw/main/v_dogman.ppm")
download_image("https://github.com/kornia/data/raw/main/v_maskedman.ppm")
download_image("https://github.com/kornia/data/raw/main/delorean_side.png")

'delorean.png'

Setup

We will import the needed libraries and create a small functionalities to make use of OpenCV I/O.

%matplotlib inline
import cv2
import kornia as K
import matplotlib.pyplot as plt
import numpy as np
import torch
import torch.nn as nn

Define a function for visualisation using Matplotlib.

def imshow(image: np.ndarray, height: int, width: int):
    """Utility function to plot images."""
    plt.figure(figsize=(height, width))
    plt.imshow(image)
    plt.axis("off")
    plt.show()

Since Kornia don’t provide render functionalities, let’s use OpenCV cv2.circle to draw points.

def draw_points(img_t: torch.Tensor, points: torch.Tensor) -> np.ndarray:
    """Utility function to draw a set of points in an image."""

    # cast image to numpy (HxWxC)
    img: np.ndarray = K.utils.tensor_to_image(img_t)

    # using cv2.circle() method
    # draw a circle with blue line borders of thickness of 2 px
    img_out: np.ndarray = img.copy()

    for pt in points:
        x, y = int(pt[0]), int(pt[1])
        img_out = cv2.circle(img_out, (x, y), radius=10, color=(0, 0, 255), thickness=5)
    return np.clip(img_out, 0, 1)

Transform single image

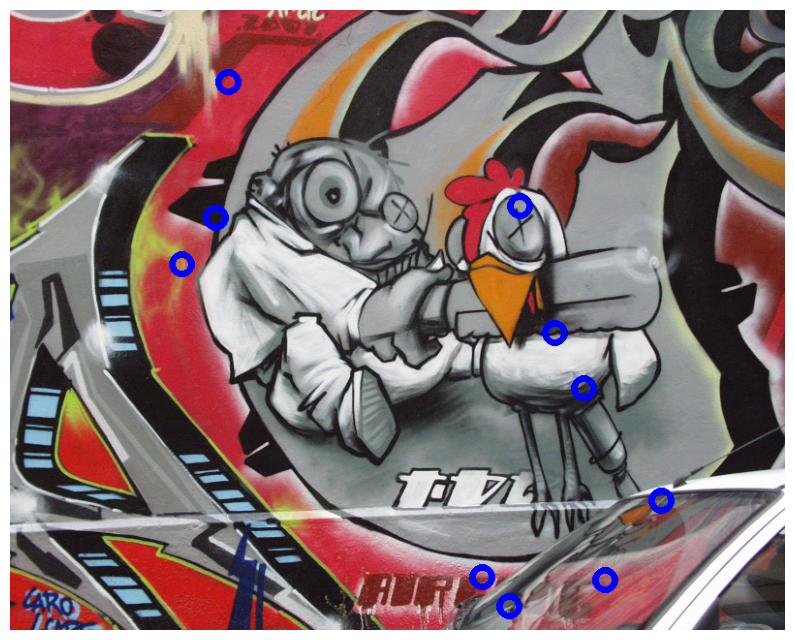

In this section we show how to open a single image, generate 2d random points and plot them using OpenCV and Matplotlib.

Next, we will use kornia.augmentation.RandomAffine to gerenate a random synthetic view of the given image and show how to retrieve the generated transformation to later be used to transform the points between images.

# load original image
img1: torch.Tensor = K.io.load_image("img1.ppm", K.io.ImageLoadType.RGB32)[None, ...]  # BxCxHxW

# generate N random points within the image
N: int = 10  # the number of points
B, CH, H, W = img1.shape

points1: torch.Tensor = torch.rand(1, N, 2)
points1[..., 0] *= W
points1[..., 1] *= H

# draw points and show
img1_vis: np.ndarray = draw_points(img1[0], points1[0])

imshow(img1_vis, 10, 10)

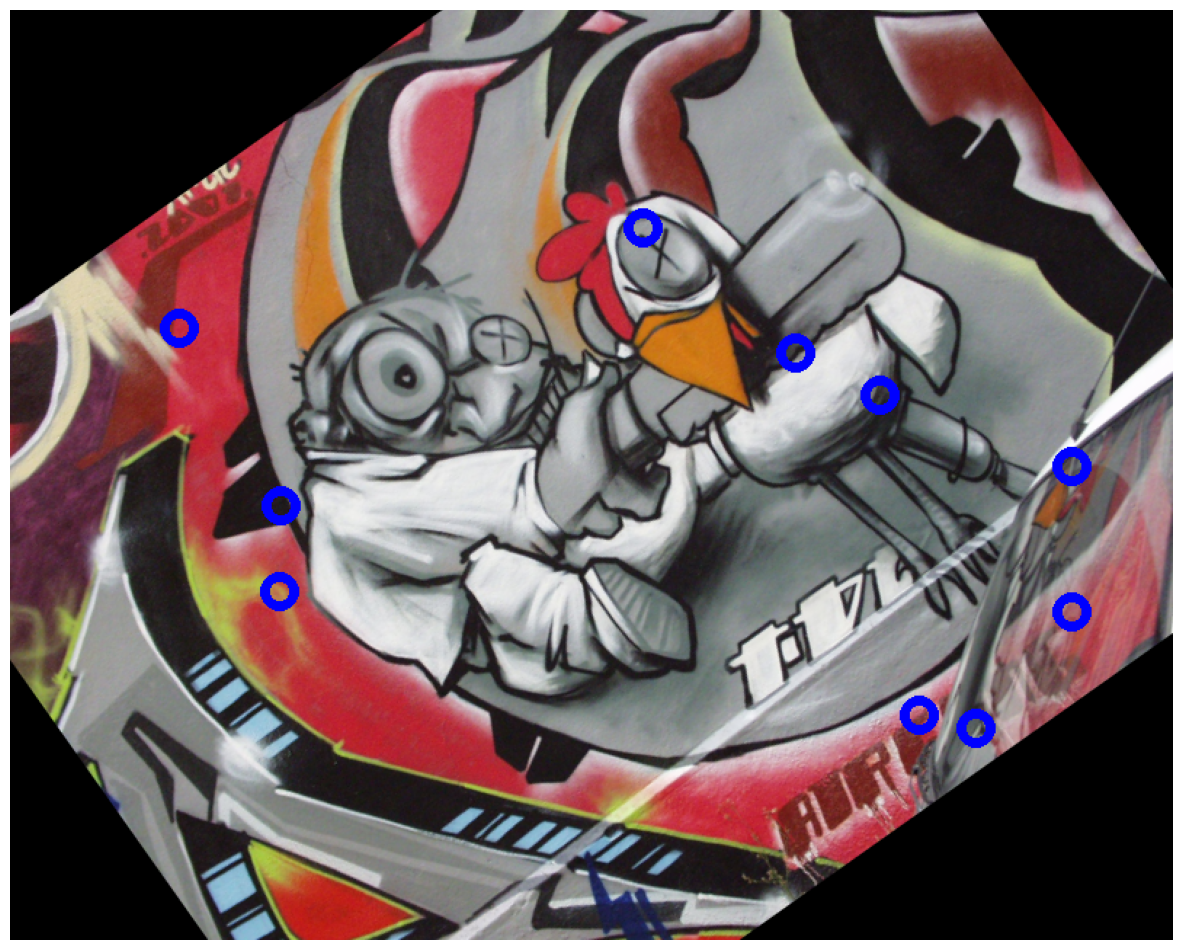

Now lets move to a bit more complex example and start to use the kornia.augmentation API to transform an image and retrieve the applied transformation. We’ll show how to reuse this transformation to project the 2d points between images.

# declare an instance of our random affine generation eith `return_transform`
# set to True, so that we recieve a tuple with the transformed image and the
# transformation applied to the original image.
transform: nn.Module = K.augmentation.RandomAffine(degrees=[-45.0, 45.0], p=1.0)

# tranform image and retrieve transformation
img2 = transform(img1, transform=transform)
trans = transform.get_transformation_matrix(img1)

# transform the original points
points2: torch.Tensor = K.geometry.transform_points(trans, points1)

img2_vis: np.ndarray = draw_points(img2, points2[0])


imshow(img2_vis, 15, 15)

Transform batch of images

In the introduction we explained about the capability of kornia.augmentation to be integrated with other torch components such as nn.Module and nn.Sequential.

We will create a small component to perform data augmentation on batched images reusing the same ideas showed before to transform images and points.

First, lets define a class that will generate samples of synthetic views with a small color augmentation using the kornia.augmentation.ColorJitter and kornia.augmentation.RandomAffine components.

NOTE: we set the forward pass to have no gradients with the decorator @torch.no_grad() to make it more memory efficient.

from typing import Dict


class DataAugmentator(nn.Module):
    def __init__(self) -> None:
        super().__init__()
        # declare kornia components as class members
        self.k1 = K.augmentation.RandomAffine([-60, 60], p=1.0)
        self.k2 = K.augmentation.ColorJitter(0.5, 0.5, p=1.0)

    @torch.no_grad()
    def forward(self, img1: torch.Tensor, pts1: torch.Tensor) -> Dict[str, torch.Tensor]:
        assert len(img1.shape) == 4, img1.shape

        # apply geometric transform the transform matrix
        img2 = self.k1(img1)
        trans = self.k1.get_transformation_matrix(img1)

        # apply color transform
        img1, img2 = self.k2(img1), self.k2(img2)

        # finally, lets use the transform to project the points
        pts2: torch.Tensor = K.geometry.transform_points(trans, pts1)

        return dict(img1=img1, img2=img2, pts1=pts1, pts2=pts2)

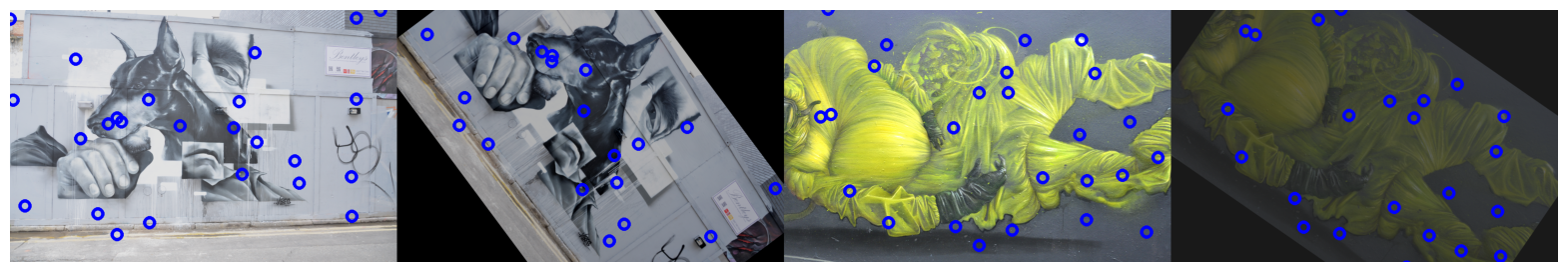

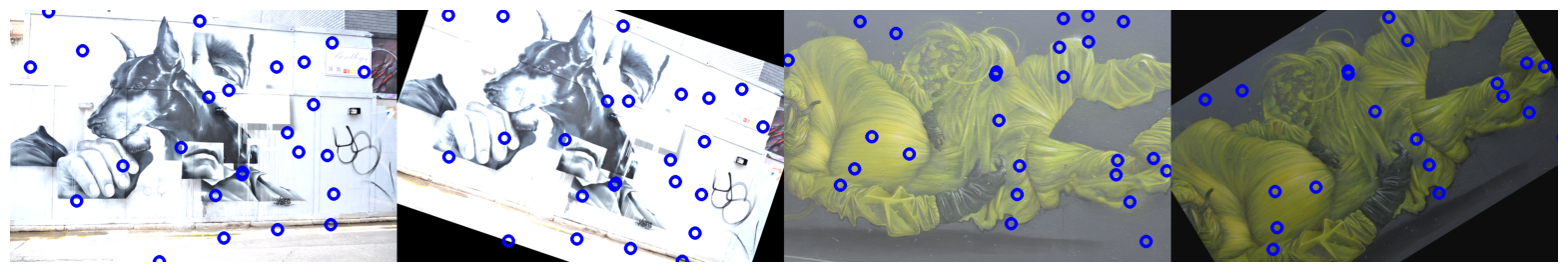

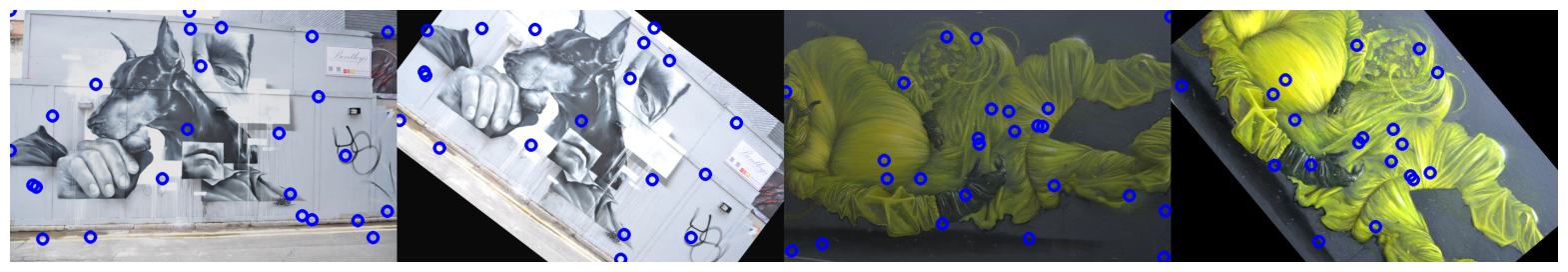

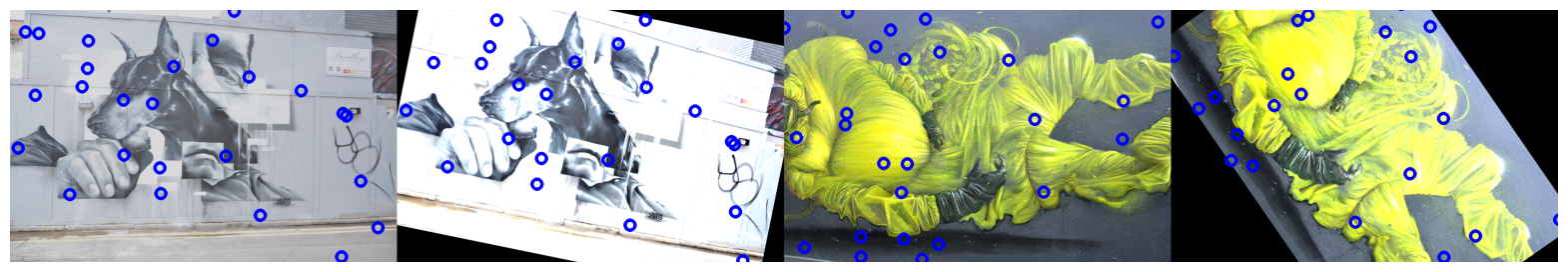

Lets use the defined component and generate some syntethic data !

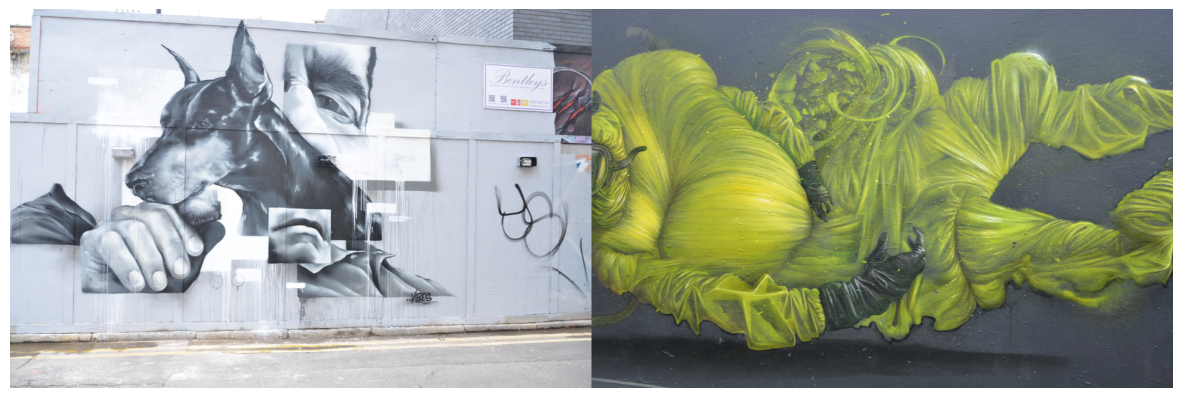

# load data and make a batch
img1: torch.Tensor = K.io.load_image("v_dogman.ppm", K.io.ImageLoadType.RGB32)[None, ...]  # BxCxHxW
img2: torch.Tensor = K.io.load_image("v_maskedman.ppm", K.io.ImageLoadType.RGB32)[None, ...]  # BxCxHxW

# crop data to make it homogeneous
crop = K.augmentation.CenterCrop((512, 786))

img1, img2 = crop(img1), crop(img2)

# visualize
img_vis = torch.cat([img1, img2], dim=-1)
imshow(K.tensor_to_image(img_vis), 15, 15)

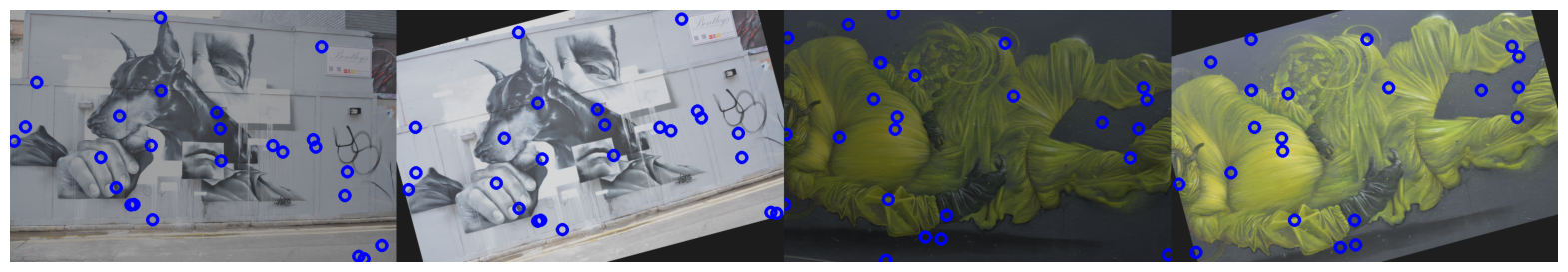

# create an instance of the augmentation pipeline
# NOTE: remember that this is a nn.Module and could be
# placed inside any network, pytorch-lighting module, etc.
aug: nn.Module = DataAugmentator()

for _ in range(5):  # create some samples
    # generate batch
    img_batch = torch.cat([img1, img2], dim=0)

    # generate random points (or from a network)
    N: int = 25
    B, CH, H, W = img_batch.shape

    points: torch.Tensor = torch.rand(B, N, 2)
    points[..., 0] *= W
    points[..., 1] *= H

    # sample data
    batch_data = aug(img_batch, points)

    # plot and show
    # visualize both images

    img_vis_list = []

    for i in range(2):
        img1_vis: np.ndarray = draw_points(batch_data["img1"][i], batch_data["pts1"][i])
        img_vis_list.append(img1_vis)

        img2_vis: np.ndarray = draw_points(batch_data["img2"][i], batch_data["pts2"][i])
        img_vis_list.append(img2_vis)

    img_vis = np.concatenate(img_vis_list, axis=1)

    imshow(img_vis, 20, 20)

BONUS: Backprop to the future

One of the main motivations during the desing for the kornia.augmentation API was to give to the user the flexibility to retrieve the applied transformation in order to achieve one of the main purposes of Kornia - the reverse engineering.

In this case we will show how easy one can combine Kornia and PyTorch components to undo the transformations and go back to the original data.

“Wait a minute, Doc. Are you telling me you built a time machine…out of a PyTorch?” - Marty McFLy

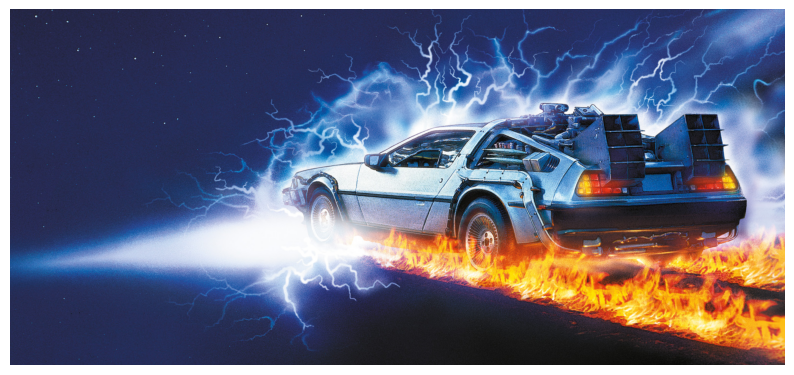

# lets start the Delorean engine
delorean: torch.Tensor = K.io.load_image("delorean_side.png", K.io.ImageLoadType.RGB32)[None, ...]  # BxCxHxW

imshow(K.utils.tensor_to_image(delorean), 10, 10)

“If my calculations are correct, when this baby hits 88 miles per hour, you’re gonna see some serious shit.” - Doc. Brown

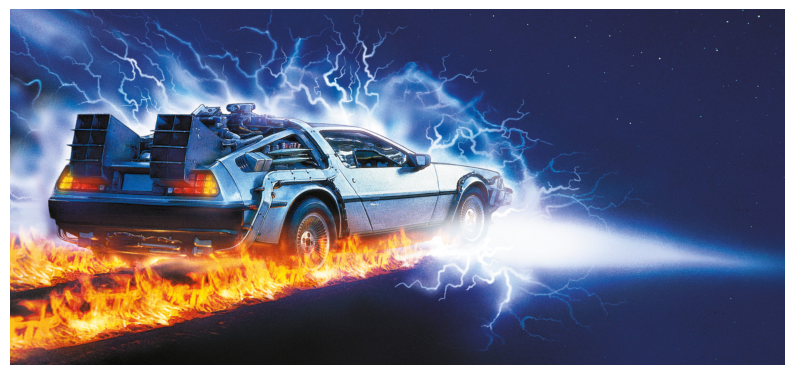

# turn on the time machine panel (TMP)

TMP = K.augmentation.RandomHorizontalFlip(p=1.0)

delorean_past = TMP(delorean)  # go !
time_coords_past = TMP.get_transformation_matrix(delorean)

imshow(K.utils.tensor_to_image(delorean_past), 10, 10)

Let’s go back to the future !

“Marty! You’ve gotta come back with me!” - Doc. Brown

# lets go back to the past

time_coords_future: torch.Tensor = torch.inverse(time_coords_past)

H, W = delorean_past.shape[-2:]
delorean_future = K.geometry.warp_perspective(delorean_past, time_coords_future, (H, W))

imshow(K.utils.tensor_to_image(delorean_future), 10, 10)
