Line detection and matching example with SOLD2: Self-supervised Occlusion-aware Line Description and Detection

In this tutorial we will show how we can quickly perform line detection, and matching using kornia.feature.sold2 API.

Setup

Install the libraries:

%%capture
!pip install kornia
!pip install kornia-rs
!pip install opencv-python --upgrade # Just for windows
!pip install matplotlib

Now let’s download an image

import io

import requests


def download_image(url: str, filename: str = "") -> str:
    filename = url.split("/")[-1].split("?")[0] if len(filename) == 0 else filename
    # Download
    bytesio = io.BytesIO(requests.get(url).content)
    # Save file
    with open(filename, "wb") as outfile:
        outfile.write(bytesio.getbuffer())

    return filename


download_image("https://github.com/cvg/SOLD2/raw/main/assets/images/terrace0.JPG")
download_image("https://github.com/cvg/SOLD2/raw/main/assets/images/terrace1.JPG")

'terrace1.JPG'

Then, we will load the libraries

import kornia as K
import kornia.feature as KF
import torch

Load the images and convert into torch tensors.

fname1 = "terrace0.JPG"
fname2 = "terrace1.JPG"

torch_img1 = K.io.load_image(fname1, K.io.ImageLoadType.RGB32)[None, ...]
torch_img2 = K.io.load_image(fname2, K.io.ImageLoadType.RGB32)[None, ...]

torch_img1.shape, torch_img2.shape

(torch.Size([1, 3, 496, 744]), torch.Size([1, 3, 496, 744]))

Prepare the data for the model, which is expected a batch of images in gray scale (shape: (Batch size, 1, Height, Width)).

The SOLD2 model was tuned for images in the range 400~800px when using config=None.

# First, convert the images to gray scale
torch_img1_gray = K.color.rgb_to_grayscale(torch_img1)
torch_img2_gray = K.color.rgb_to_grayscale(torch_img2)

torch_img1_gray.shape, torch_img2_gray.shape

(torch.Size([1, 1, 496, 744]), torch.Size([1, 1, 496, 744]))

# then, stack the images to create/simulate a batch
imgs = torch.cat([torch_img1_gray, torch_img2_gray], dim=0)

imgs.shape

torch.Size([2, 1, 496, 744])

Performs line detection and matching

Load the sold2 model with pre-trained=True, which will download and set pre-trained weights to the model.

%%capture
sold2 = KF.SOLD2(pretrained=True, config=None)

Perform the model prediction

%%capture
with torch.inference_mode():
    outputs = sold2(imgs)

Organize the outputs for demo.

Attention: The detected line segments is in ij coordinates convention.

outputs.keys()

dict_keys(['junction_heatmap', 'line_heatmap', 'dense_desc', 'line_segments'])

line_seg1 = outputs["line_segments"][0]
line_seg2 = outputs["line_segments"][1]
desc1 = outputs["dense_desc"][0]
desc2 = outputs["dense_desc"][1]

Perform line matching

with torch.inference_mode():
    matches = sold2.match(line_seg1, line_seg2, desc1[None], desc2[None])

valid_matches = matches != -1
match_indices = matches[valid_matches]

matched_lines1 = line_seg1[valid_matches]
matched_lines2 = line_seg2[match_indices]

Plot lines detected and also the match

Plot functions adapted from original code.

import copy

import matplotlib
import matplotlib.colors as mcolors
import matplotlib.pyplot as plt
import numpy as np


def plot_images(imgs, titles=None, cmaps="gray", dpi=100, size=6, pad=0.5):
    """Plot a set of images horizontally.
    Args:
        imgs: a list of NumPy or PyTorch images, RGB (H, W, 3) or mono (H, W).
        titles: a list of strings, as titles for each image.
        cmaps: colormaps for monochrome images.
    """
    n = len(imgs)
    if not isinstance(cmaps, (list, tuple)):
        cmaps = [cmaps] * n
    figsize = (size * n, size * 3 / 4) if size is not None else None
    fig, ax = plt.subplots(1, n, figsize=figsize, dpi=dpi)
    if n == 1:
        ax = [ax]
    for i in range(n):
        ax[i].imshow(imgs[i], cmap=plt.get_cmap(cmaps[i]))
        ax[i].get_yaxis().set_ticks([])
        ax[i].get_xaxis().set_ticks([])
        ax[i].set_axis_off()
        for spine in ax[i].spines.values():  # remove frame
            spine.set_visible(False)
        if titles:
            ax[i].set_title(titles[i])
    fig.tight_layout(pad=pad)


def plot_lines(lines, line_colors="orange", point_colors="cyan", ps=4, lw=2, indices=(0, 1)):
    """Plot lines and endpoints for existing images.
    Args:
        lines: list of ndarrays of size (N, 2, 2).
        colors: string, or list of list of tuples (one for each keypoints).
        ps: size of the keypoints as float pixels.
        lw: line width as float pixels.
        indices: indices of the images to draw the matches on.
    """
    if not isinstance(line_colors, list):
        line_colors = [line_colors] * len(lines)
    if not isinstance(point_colors, list):
        point_colors = [point_colors] * len(lines)

    fig = plt.gcf()
    ax = fig.axes
    assert len(ax) > max(indices)
    axes = [ax[i] for i in indices]
    fig.canvas.draw()

    # Plot the lines and junctions
    for a, l, lc, pc in zip(axes, lines, line_colors, point_colors):
        for i in range(len(l)):
            line = matplotlib.lines.Line2D(
                (l[i, 1, 1], l[i, 0, 1]),
                (l[i, 1, 0], l[i, 0, 0]),
                zorder=1,
                c=lc,
                linewidth=lw,
            )
            a.add_line(line)
        pts = l.reshape(-1, 2)
        a.scatter(pts[:, 1], pts[:, 0], c=pc, s=ps, linewidths=0, zorder=2)


def plot_color_line_matches(lines, lw=2, indices=(0, 1)):
    """Plot line matches for existing images with multiple colors.
    Args:
        lines: list of ndarrays of size (N, 2, 2).
        lw: line width as float pixels.
        indices: indices of the images to draw the matches on.
    """
    n_lines = len(lines[0])

    cmap = plt.get_cmap("nipy_spectral", lut=n_lines)
    colors = np.array([mcolors.rgb2hex(cmap(i)) for i in range(cmap.N)])

    np.random.shuffle(colors)

    fig = plt.gcf()
    ax = fig.axes
    assert len(ax) > max(indices)
    axes = [ax[i] for i in indices]
    fig.canvas.draw()

    # Plot the lines
    for a, l in zip(axes, lines):
        for i in range(len(l)):
            line = matplotlib.lines.Line2D(
                (l[i, 1, 1], l[i, 0, 1]),
                (l[i, 1, 0], l[i, 0, 0]),
                zorder=1,
                c=colors[i],
                linewidth=lw,
            )
            a.add_line(line)

imgs_to_plot = [K.tensor_to_image(torch_img1), K.tensor_to_image(torch_img2)]
lines_to_plot = [line_seg1.numpy(), line_seg2.numpy()]

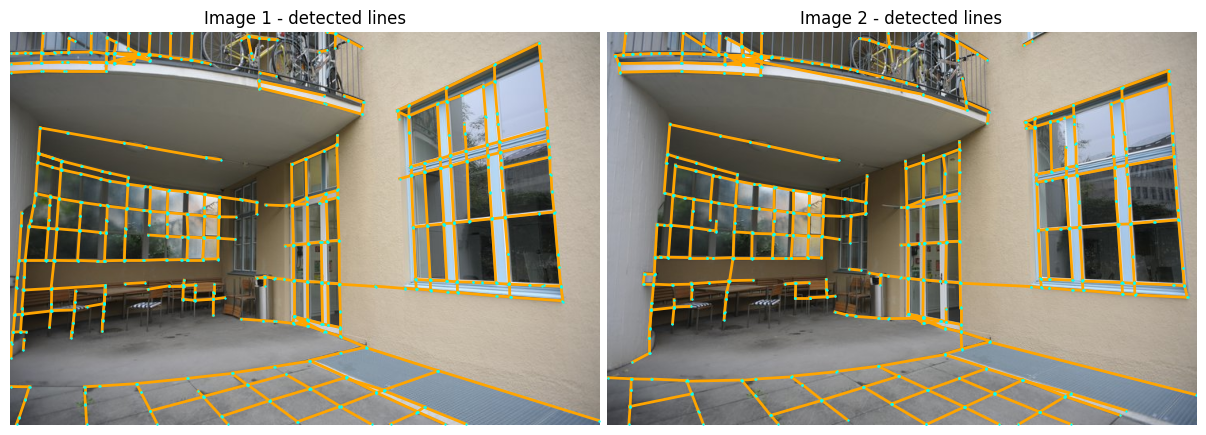

plot_images(imgs_to_plot, ["Image 1 - detected lines", "Image 2 - detected lines"])
plot_lines(lines_to_plot, ps=3, lw=2, indices={0, 1})

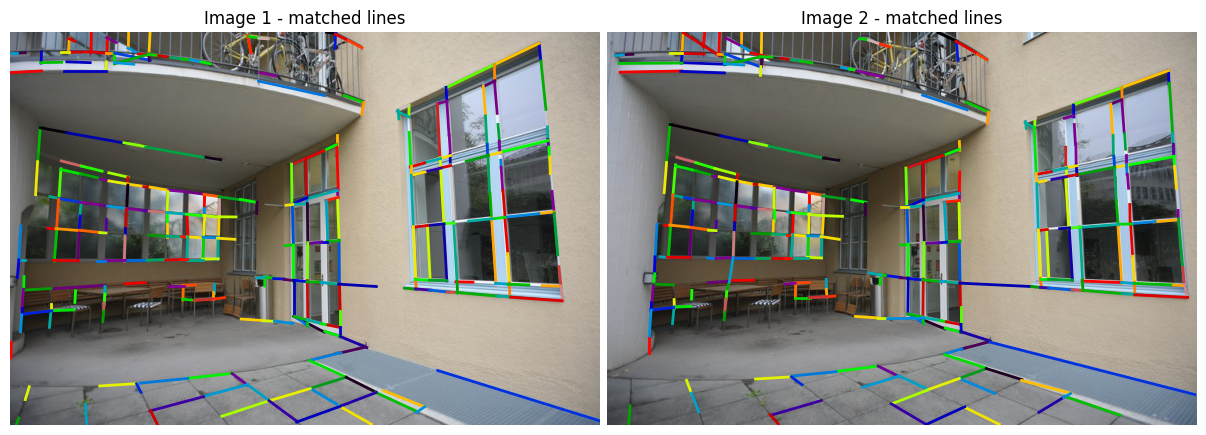

plot_images(imgs_to_plot, ["Image 1 - matched lines", "Image 2 - matched lines"])
plot_color_line_matches([matched_lines1, matched_lines2], lw=2)

Example of homography from line segment correspondences from SOLD2

Robust geometry estimation with Random sample consensus (RANSAC)

Load the model:

ransac = K.geometry.RANSAC(model_type="homography_from_linesegments", inl_th=3.0)

Perform the model correspondencies

H_ransac, correspondence_mask = ransac(matched_lines1.flip(dims=(2,)), matched_lines2.flip(dims=(2,)))

Wrap the image 1 to image 2

img1_warp_to2 = K.geometry.warp_perspective(torch_img1, H_ransac[None], (torch_img1.shape[-2:]))

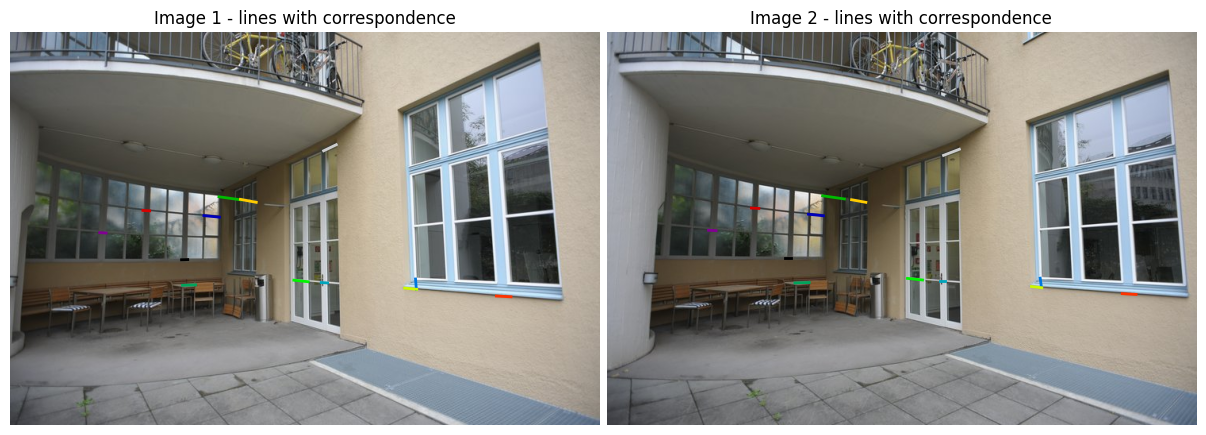

Plot the matched lines and wrapped image

plot_images(
    imgs_to_plot,
    ["Image 1 - lines with correspondence", "Image 2 - lines with correspondence"],
)
plot_color_line_matches([matched_lines1[correspondence_mask], matched_lines2[correspondence_mask]], lw=2)

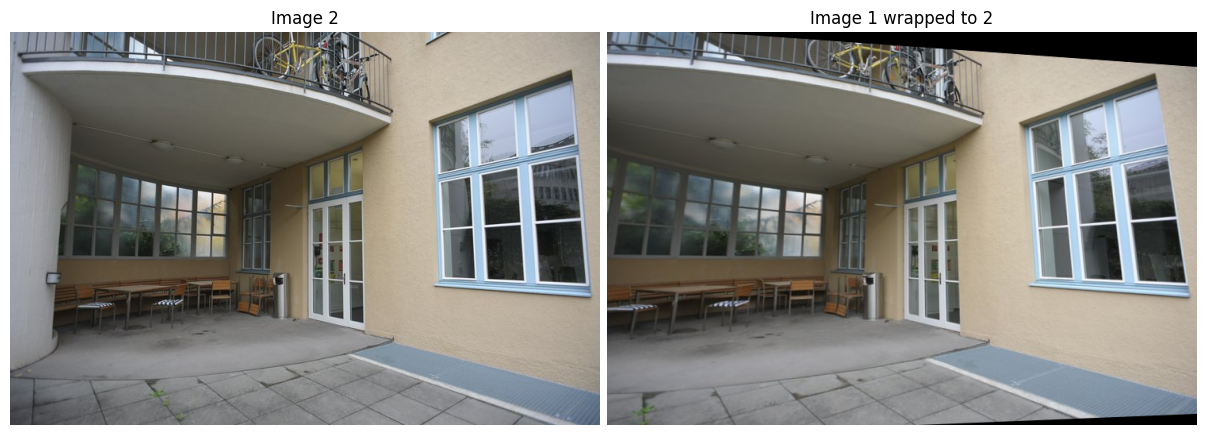

plot_images(
    [K.tensor_to_image(torch_img2), K.tensor_to_image(img1_warp_to2)],
    ["Image 2", "Image 1 wrapped to 2"],
)
