Introduction to Morphological Operators

In this tutorial you are gonna explore kornia.morphology, that’s Kornia’s module for differentiable Morphological Operators.

By the end, you will be able to use morphological operations as easy as:

new_image = morph.operation(original_image, structuring_element)

But first things first, let’s prepare the environment.

Download Kornia

If you don’t have Kornia installed, you can download it using pip.

%%capture
!pip install kornia
!pip install kornia-rs

Prepare the image

With kornia.morphology, you can apply morphological operators in 3 channel color images. Besides, all operators are differentiable. Let’s download the image

import io

import requests


def download_image(url: str, filename: str = "") -> str:
    filename = url.split("/")[-1].split("?")[0] if len(filename) == 0 else filename
    # Download
    bytesio = io.BytesIO(requests.get(url).content)
    # Save file
    with open(filename, "wb") as outfile:
        outfile.write(bytesio.getbuffer())

    return filename


download_image(
    "https://image.shutterstock.com/image-photo/portrait-surprised-cat-scottish-straight-260nw-499196506.jpg", "img.jpg"
)

'img.jpg'

Imports and read the image

import kornia as K
import torch

device = "cpu"  # 'cuda:0' for GPU

img_t = K.io.load_image("img.jpg", K.io.ImageLoadType.RGB32, device=device)[None, ...]

Structuring element

We have the original image ready to go, now we need the second part in the operation, the structuring element (aka Kernel).

The kernel must be a 2-dim tensor with odd sides, i.e. 3x3.

kernel = torch.tensor([[0, 1, 0], [1, 1, 1], [0, 1, 0]]).to(device)

Making plots!

In this tutorial we are gonna compare the images before and after transforming them.

It make sense to create a function to plot and see the changes!

import matplotlib.pyplot as plt
from matplotlib import rcParams


def plot_morph_image(tensor):
    # kornia.tensor_to_image
    image = K.tensor_to_image(tensor.squeeze(0))  # Tensor to image

    # Plot before-after
    rcParams["figure.figsize"] = 20, 20
    fig, ax = plt.subplots(1, 2)
    ax[0].axis("off")
    ax[0].imshow(K.tensor_to_image(img_t))
    ax[1].axis("off")
    ax[1].imshow(image)

Morphology

The main goal of kornia.morphology is that you could easily implement several morphological operator as follows:

new_image = morph.operation(original_image, structuring_element)

Let’s check them all!

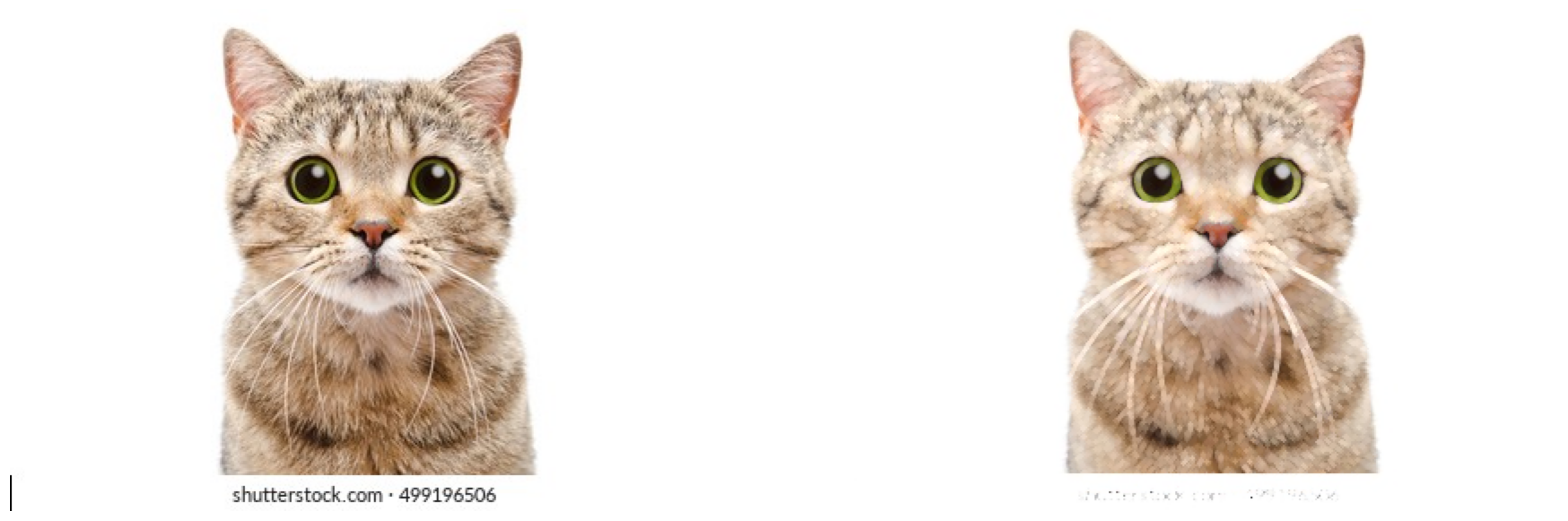

Dilation

from kornia import morphology as morph

dilated_image = morph.dilation(img_t, kernel)  # Dilation
plot_morph_image(dilated_image)  # Plot

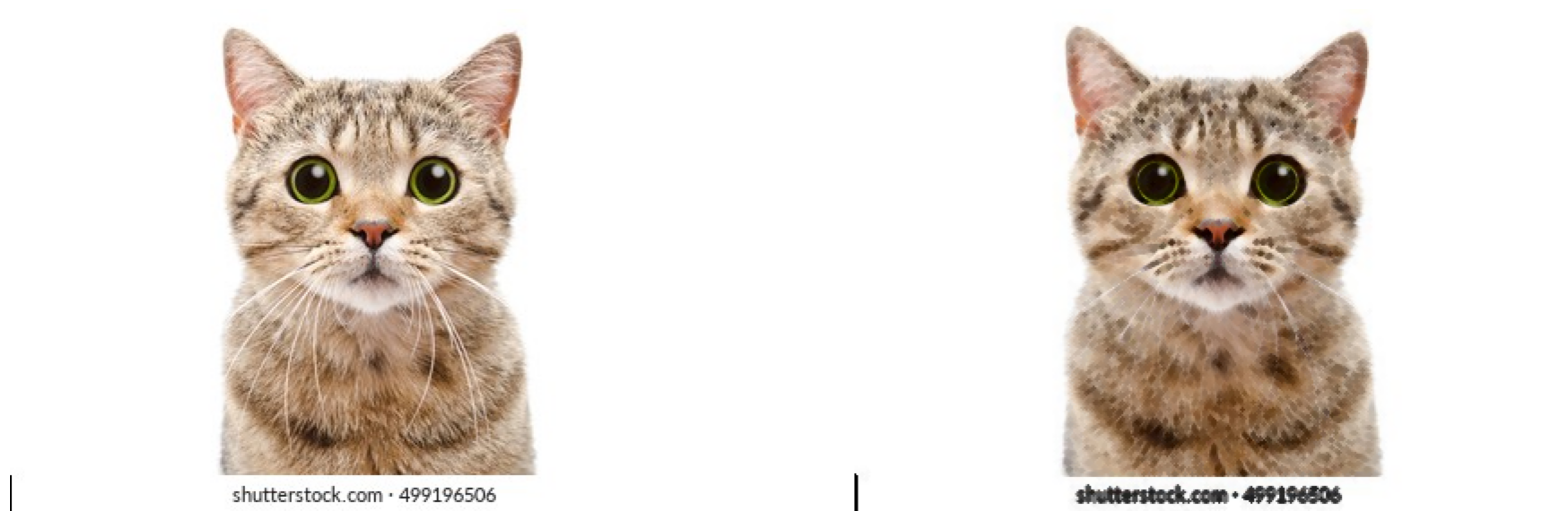

Erosion

eroded_image = morph.erosion(img_t, kernel)  # Erosion
plot_morph_image(eroded_image)  # Plot

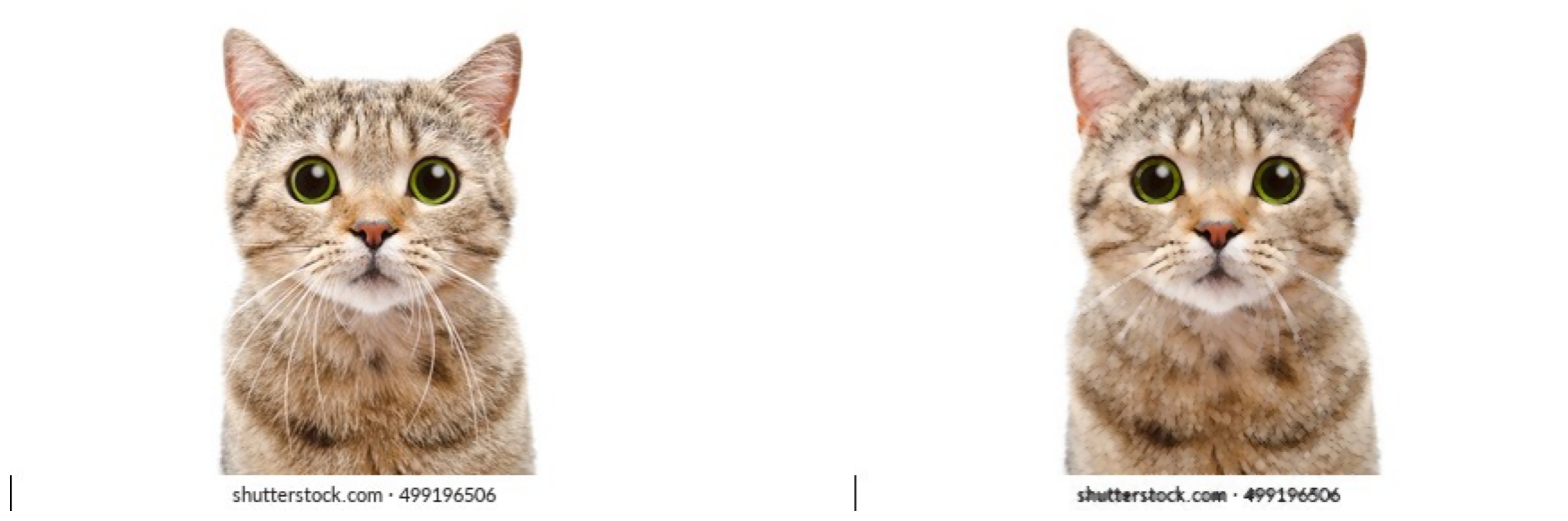

Open

opened_image = morph.opening(img_t, kernel)  # Open
plot_morph_image(opened_image)

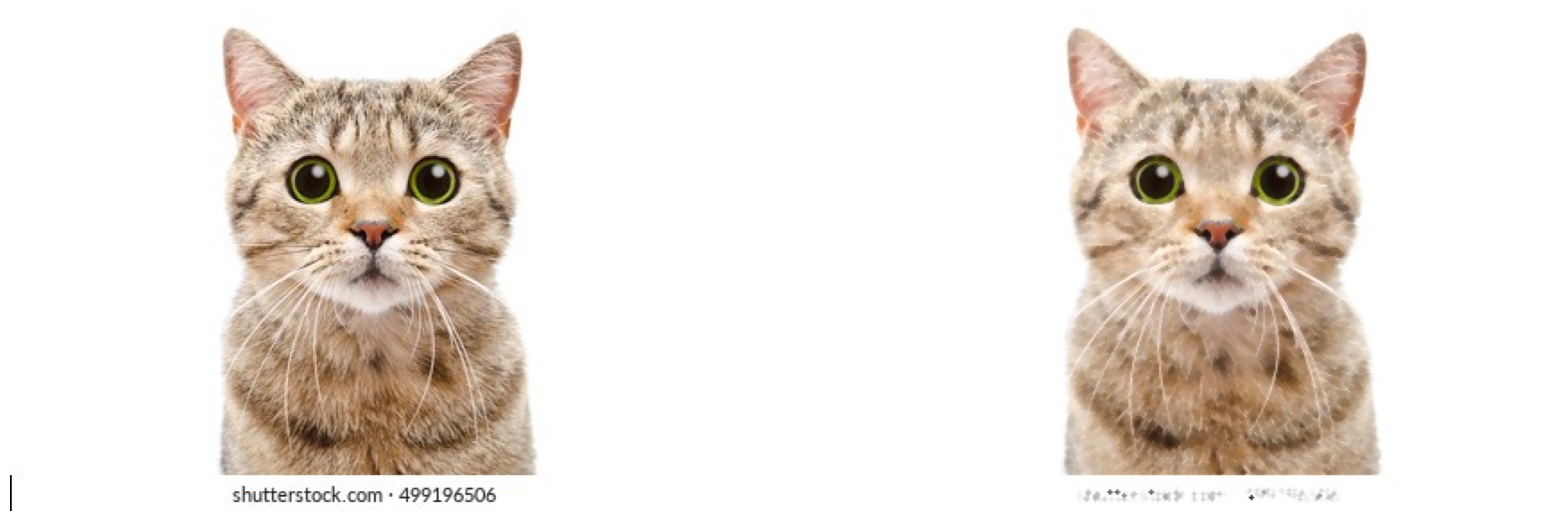

Close

closed_image = morph.closing(img_t, kernel)  # Close
plot_morph_image(closed_image)  # Plot

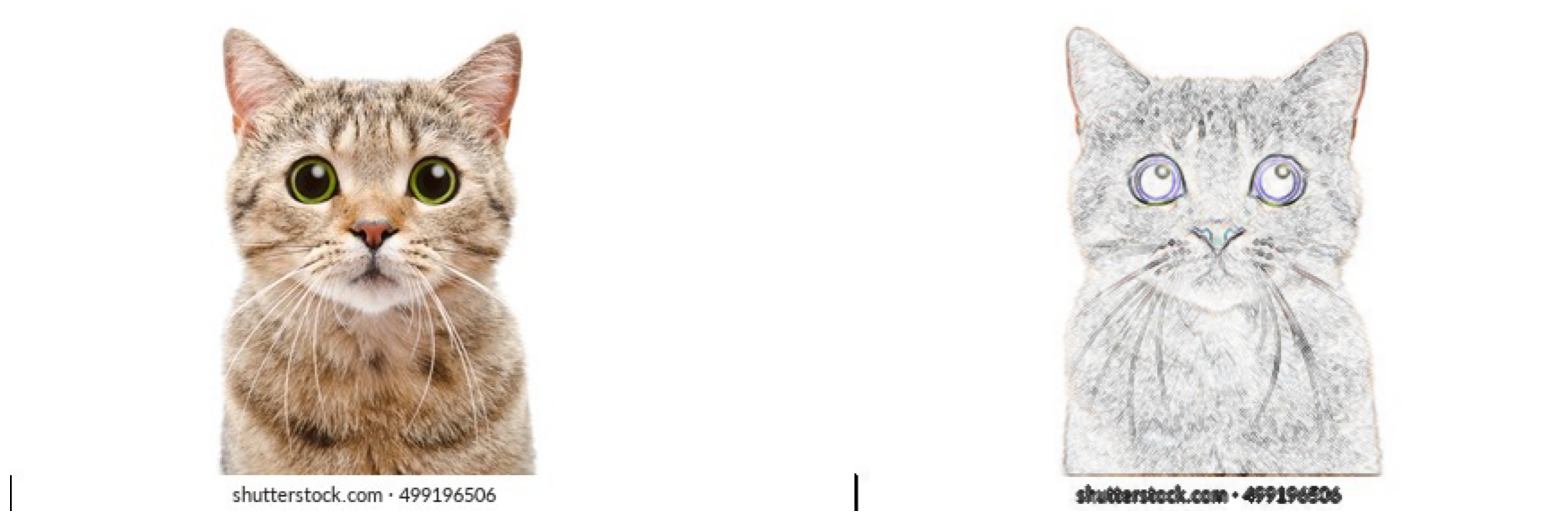

Morphological Gradient

graded_image = morph.gradient(img_t, kernel)  # Morphological gradient
plot_morph_image(1.0 - graded_image)

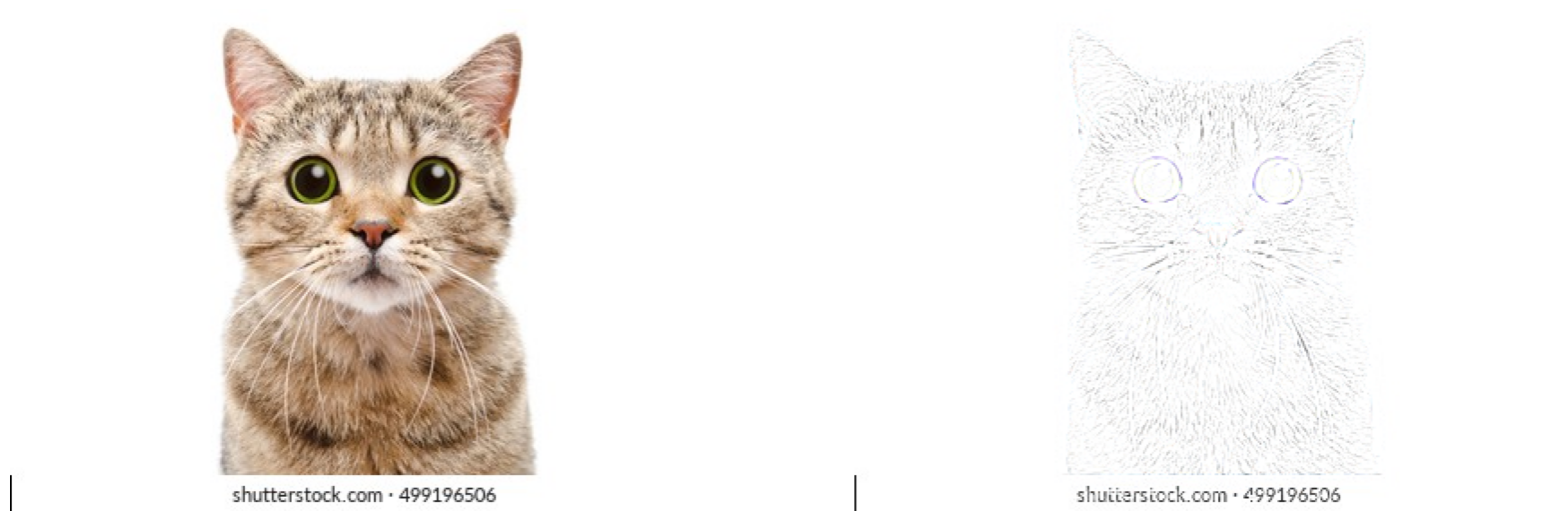

Bottom Hat

bottom_image = morph.bottom_hat(img_t, kernel)  # Black Hat
plot_morph_image(1.0 - bottom_image)

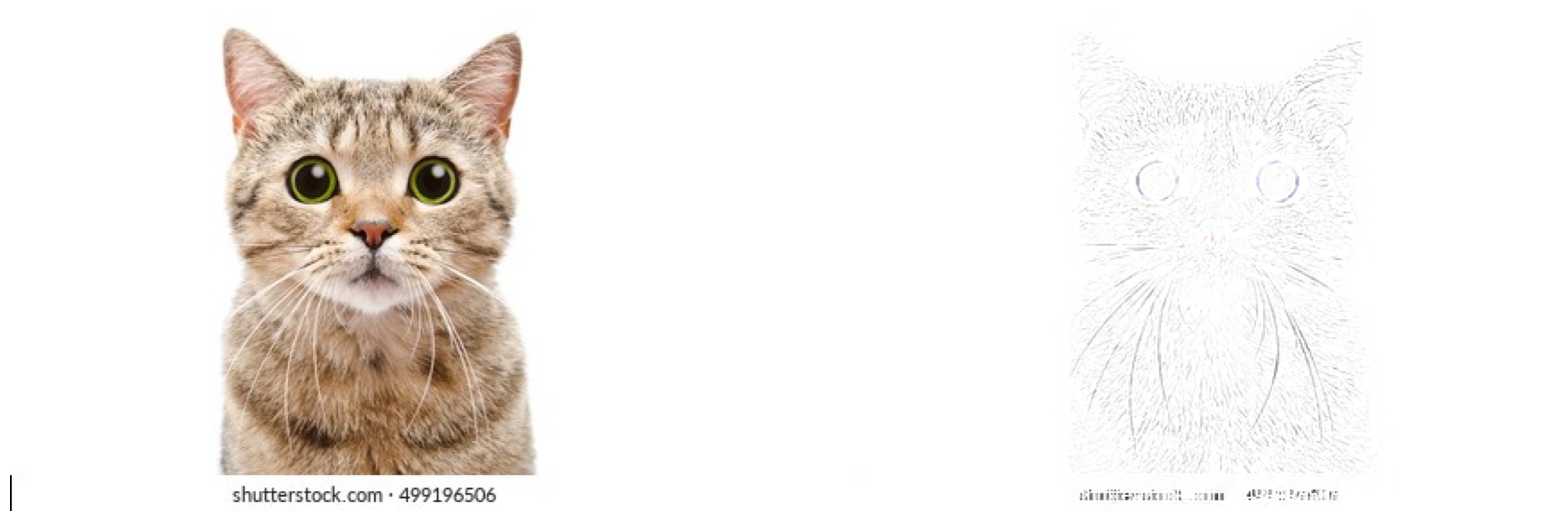

Top Hat

toph_image = morph.top_hat(img_t, kernel)  # Top Hat
plot_morph_image(1.0 - toph_image)

Conclusion

And that’s it!

Now you know how to use Kornia to apply differentiable morphological operations in your PyTorch pipeline.

Many thanks for using Kornia, and have fun!
